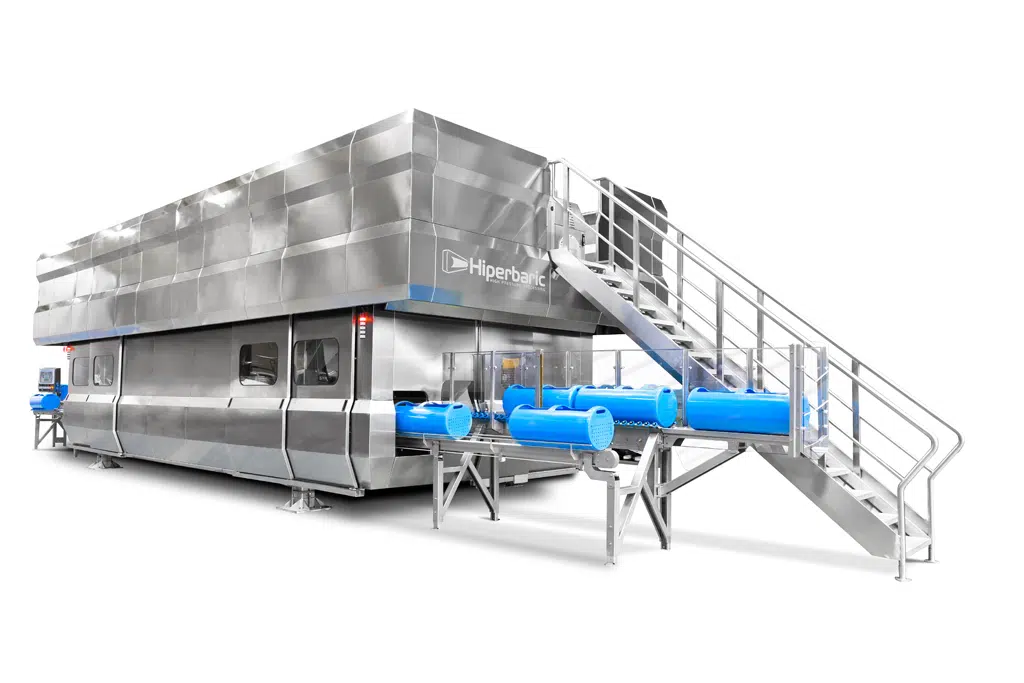

Hiperbaric 525

Throughput kg/hour [pounds/hour]

3,210 [7,080]

Vessel Capacity liters [US liq. Gallons]

525 [150]

Vessel diameter inside mm [inches]

380 [15]

Dimensions meters [feet]

L:18.5[60.6] W:4.4[14.4] H:4.3[14]

Hiperbaric 525 Main Features

Hiperbaric 525 can be configured as standard (intensifiers installed on the floor) or integrated (intensifiers installed above unit).
Versatility to expand by adding more intensifiers to increase production.
Its advanced design offers the longest lasting yoke and vessel on the market.

The Hiperbaric 525 is our largest in-pack unit, following the demands of customers with the largest production environments. With a 525-liter (150 gallons) capacity and large 380 mm (15 inch) diameter, it can deliver around 3,210 kg/h (7,080 lbs./h) at 600 MPa/87,000 psi. Its capacity and low processing cost are unmatched.

It is the largest and most productive HPP system in the world

Speak to an HPP Specialist

Discover our range of In-Pack equipment

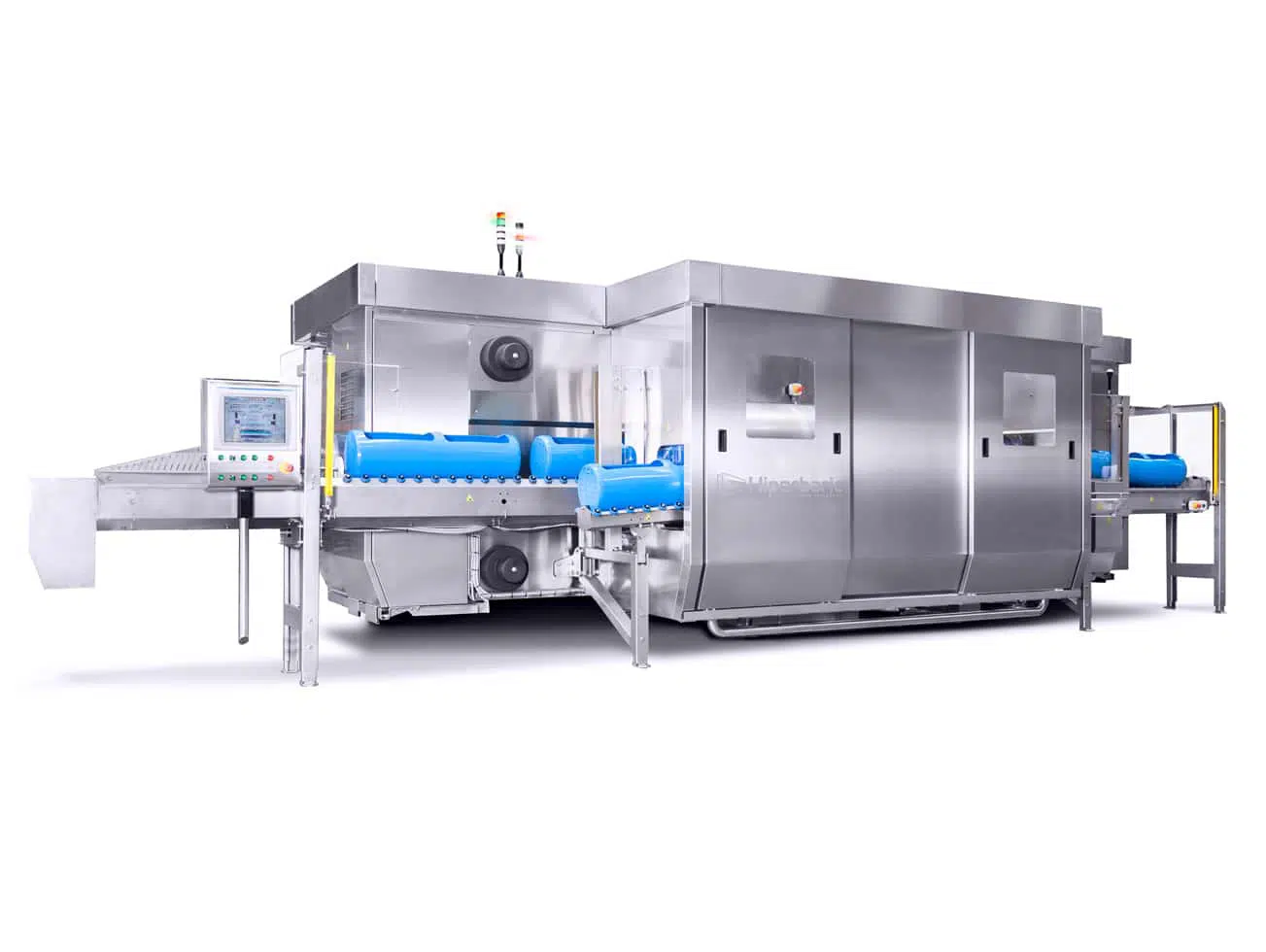

H55
